GPON
BDCOM catalog section.
No image
PWR-75-AC
AC power supply of GP3600 series (Input voltage: AC 100-240V, Maximum power consumption: 75W)
No image
PWR-75-DC
DC power supply of GP3600 series (Input voltage: DC 36-72V, Maximum power consumption: 75W)
No image
PWR-100-AC
AC power supply for GP3600-08C/16C (Input voltage: AC100-240V, Power: 100W)
No image
PWR-100-DC
DC power supply for GP3600-08C/16C (Input voltage: 36-72VDC, Output: +12V/8.4A, Power: 100W)
No image

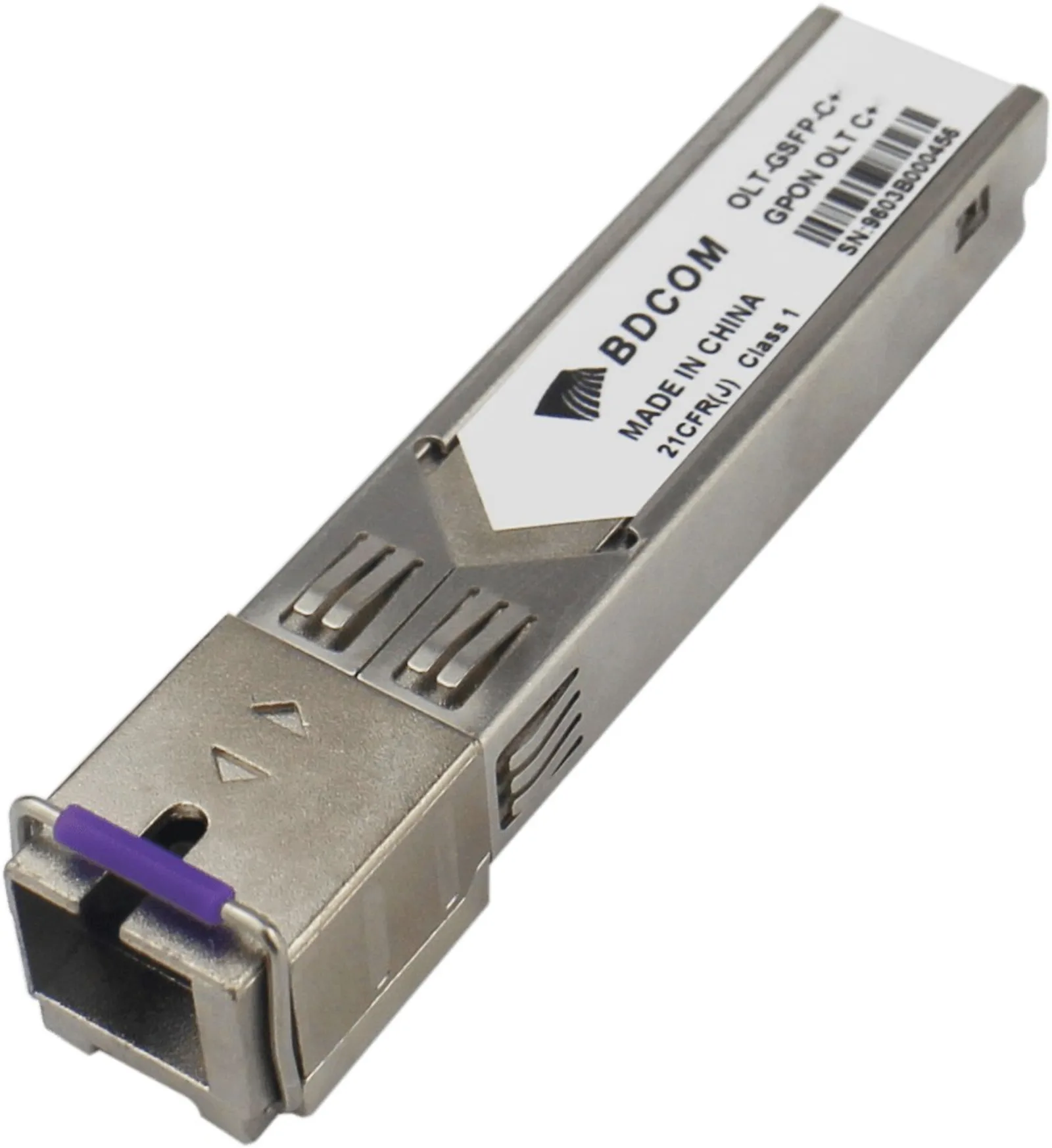

OLT-GSFP-C+
OLT SFP module, Class C+ standard, downlink 2.5G/uplink 1.25G, TX wavelength 1490nm, RX wavelength 1310nm, SC interface
No image
OLT-GSFP-C++
OLT SFP module, Class C++ standard, downlink 2.5G/uplink 1.25G, TX wavelength 1490nm, RX wavelength 1310nm, SC interface
No image
OLT-GSFP-C+++
OLT SFP module, Class C+++ standard, downlink 2.5G/uplink 1.25G, TX wavelength 1490nm, RX wavelength 1310nm, SC interface
No image

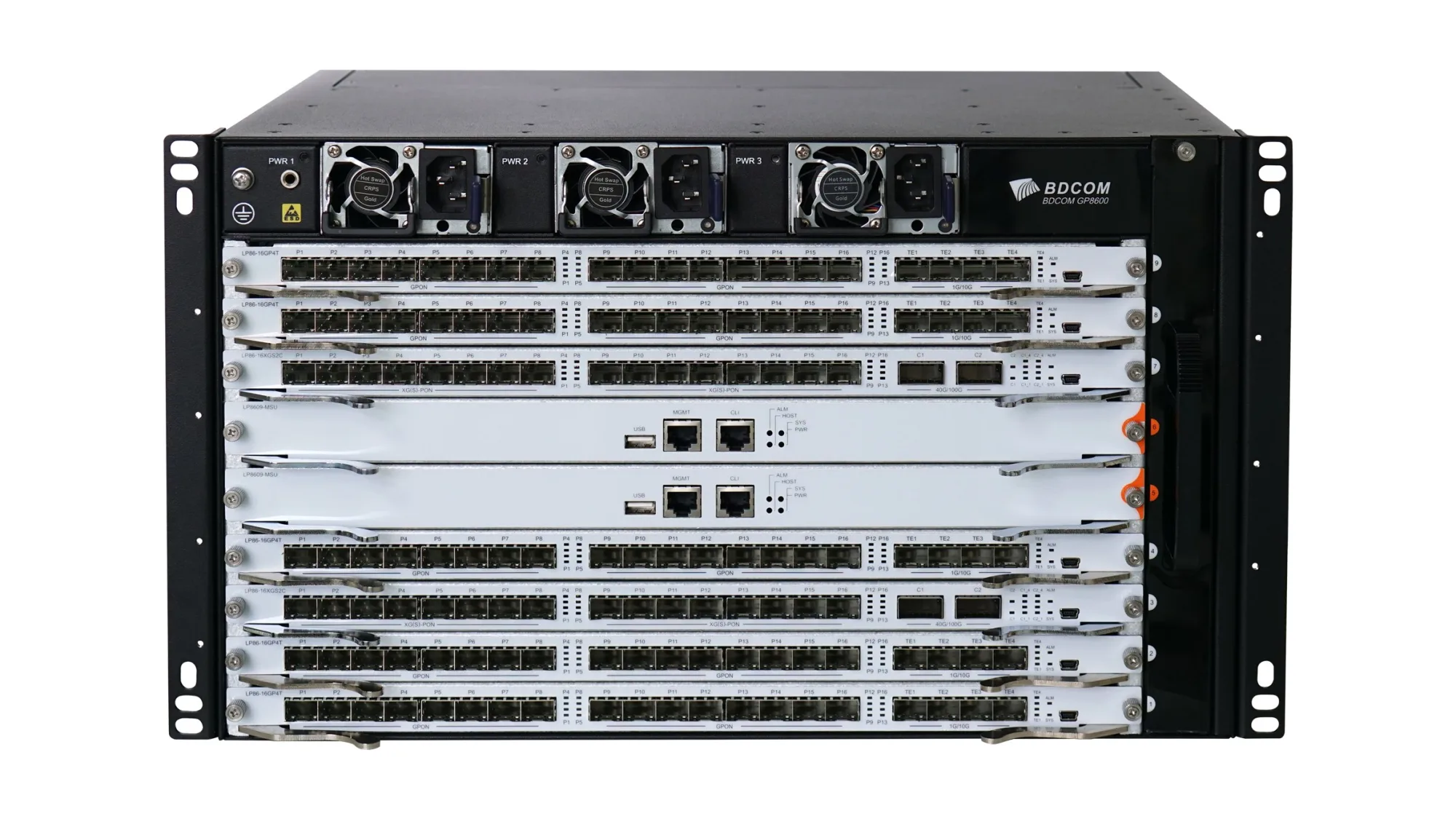

GP8600-16
BDCM68656 / CTC7132
16-port XG(S)-PON OLT with 16-port XG(S)-PON (excluding PON module) + 8-port 10G SFP+ 2-port 100G QSFP28 (supports one AC100~240V power supply, 2 power slots, 19-inch standard rack-mounted)
No image
GP8600-16-DC
BDCM68656 / CTC7132
16-port XG(S)-PON OLT with 16-port XG(S)-PON (excluding PON module) + 8-port 10G SFP+ 2-port 100G QSFP28 (supports one DC36V~72V power supply, 2 power slots, 19-inch standard rack-mounted)
No image
GP8600-08CP
BDCM68658 / CTC7132
8-port XG(S)-PON Combo OLT with 8-port XG(S)-PON Combo (compatible with GPON)+8-port 10G SFP+ 2-port 100G QSFP28 (supports one AC100~240V power supply, 2 power slots, 19-inch standard rack-mounted)
No image
GP8600-08CP-DC
BDCM68658 / CTC7132
8-port XG(S)-PON Combo OLT with 8-port XG(S)-PON Combo (compatible with GPON)+8-port 10G SFP+ 2-port 100G QSFP28(supports one DC36V~72V power supply, 2 power slots, 19-inch standard rack-mounted)
No image
GP8600-C4
GP8600-C4 OLT chassis (1 fan slot with fan module, 2 power slots without power supply, 2 control card slots, 2 line card slots)
No image
GP8600-C9
GP8600-C9 OLT chassis (1 fan slot with fan module, 3 power slots without power supply, 2 control card slots, 7 line card slots)
No image

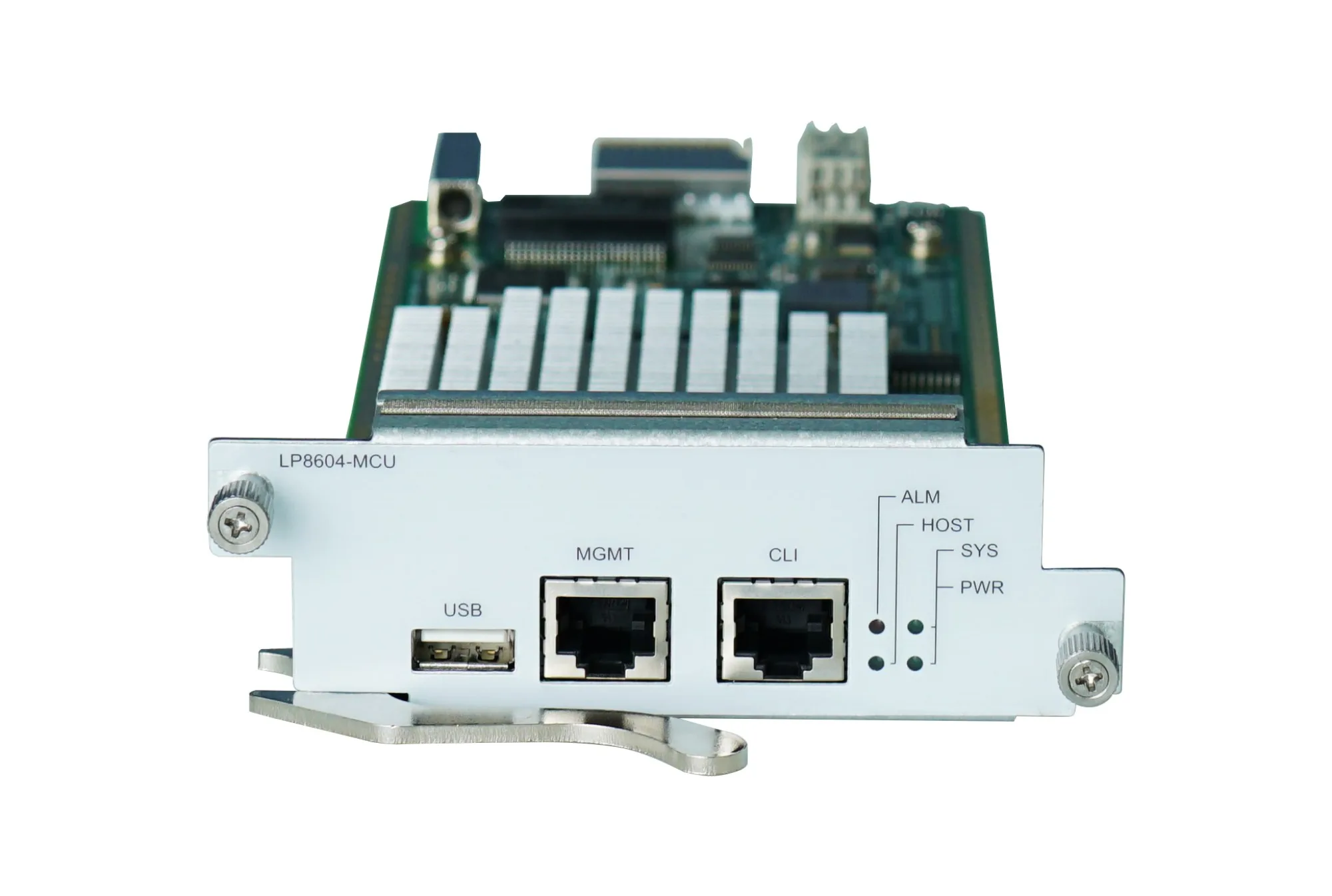

LP8604-MCU
LS1046
GP8600-C4 Main Control Card, 1 CLI port, 1 USB port, 1 MGMT port, only for GP8600-C4
No image
LP8609-MSU
CTC7132
GP8600-C9 Main Control Card, 1 CLI port, 1 USB port, 1 MGMT port, only for GP8600-C9
No image

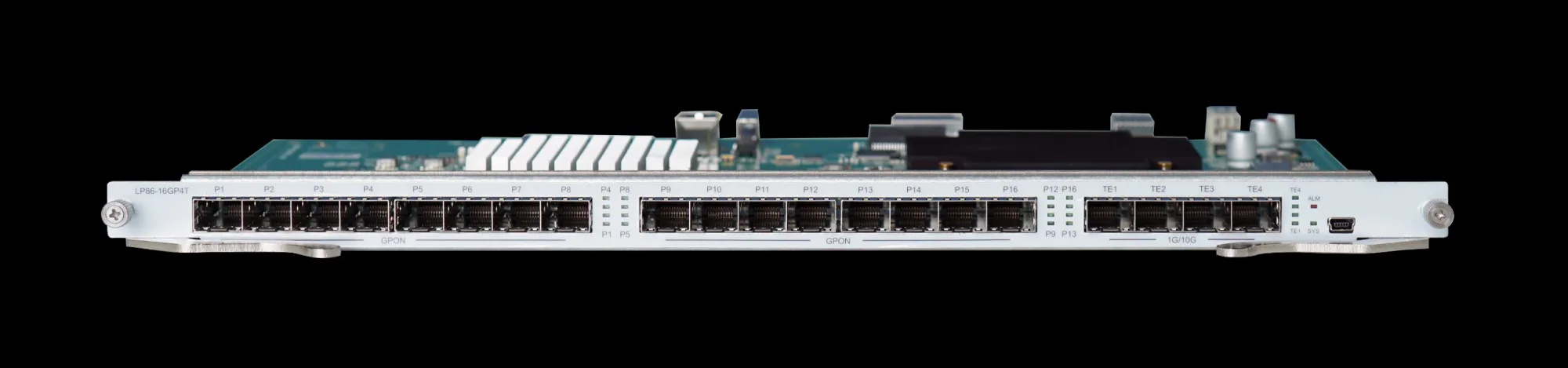

LP86-16GP4T
BDCM68622 / CTC7132
GPON Line Card, supports 16-port GPON SFP + 4-port 10G SFP+ (excluding optical modules)
No image

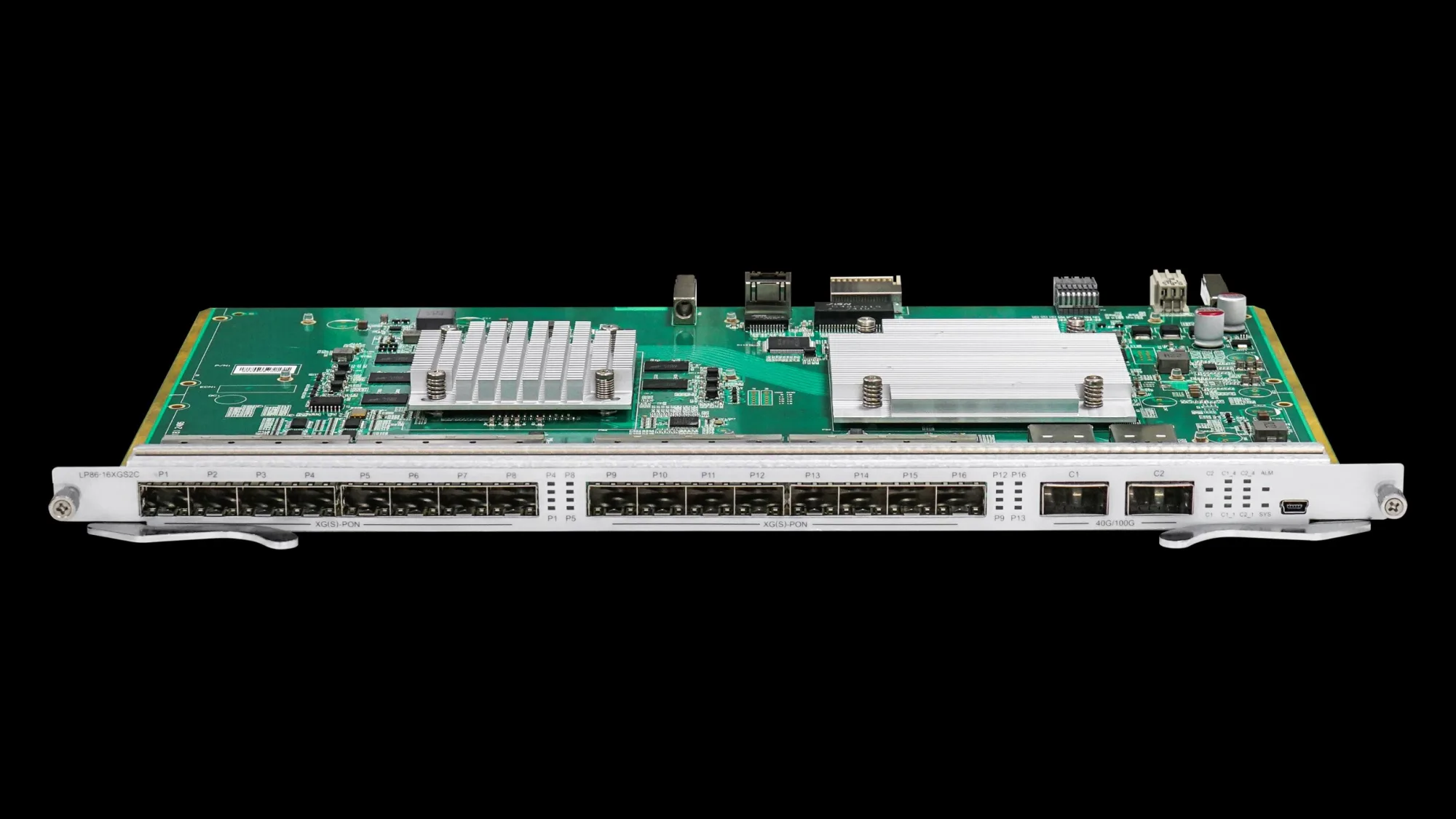

LP86-16XGS2C
BDCM68656 / CTC7132
XG(S)-PON Line Card, supports 16-port XG(S)-PON (compatible with GPON) + 2-port 100G QSFP28 (excluding optical modules)
No image

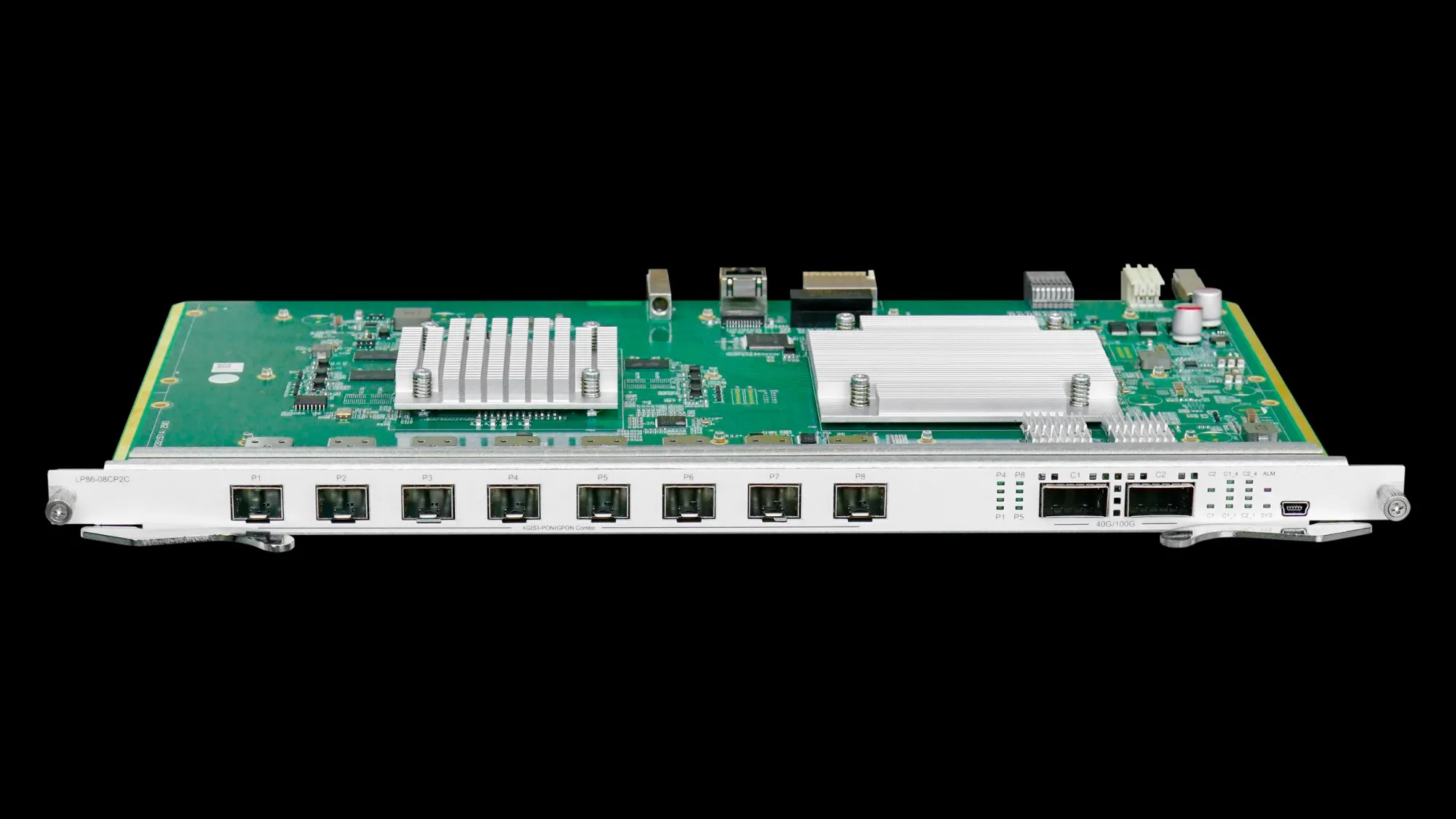

LP86-08CP2C
BDCM68658 / CTC7132
XG(S)-PON Combo Line Card, supports 8-port XG(S)-PON Combo (compatible with GPON) + 2-port 100G QSFP28 (excluding optical modules)
No image
PWR-150-ACB
GP8600-16 OLT AC power supply (input voltage AC 100~240V, maximum power 150W)
No image
PWR-150-DCB
GP8600-16 OLT DC power supply (input voltage DC 36~72V, maximum power 150W)
No image
PWR-450-AC
GP8600-C4 AC power supply (input voltage AC 100~240V, maximum power 450W)
No image
PWR-450-DC
GP8600-C4 DC power supply (input voltage DC 36~72V, maximum power 450W)
No image
PWR-1300-AC
GP8600-C9 AC power supply (input voltage AC 100~240V, maximum power 1300W)
No image
PWR-1300-DC
GP8600-C9 DC power supply (input voltage DC 36~72V, maximum power 1300W)
No image
OLT-XGS-N1
XGS-PON module (N1 standard, 10G downlink, 10G/2.5G uplink, TX wavelength 1577nm, RX wavelength 1270nm, SC/UPC interface)
No image
OLT-XGS-C+
XGS-PON Combo module (C+ standard,XG(S)-PON:10G downlink, 10G/2.5G uplink, TX wavelength 1577nm, RX wavelength 1270nm;GPON:2.5G downlink, 1.25G uplink, TX wavelength 1490nm, RX wavelength 1310nm SC/UPC interface)
