Industrial Switch
BDCOM catalog section.
No image

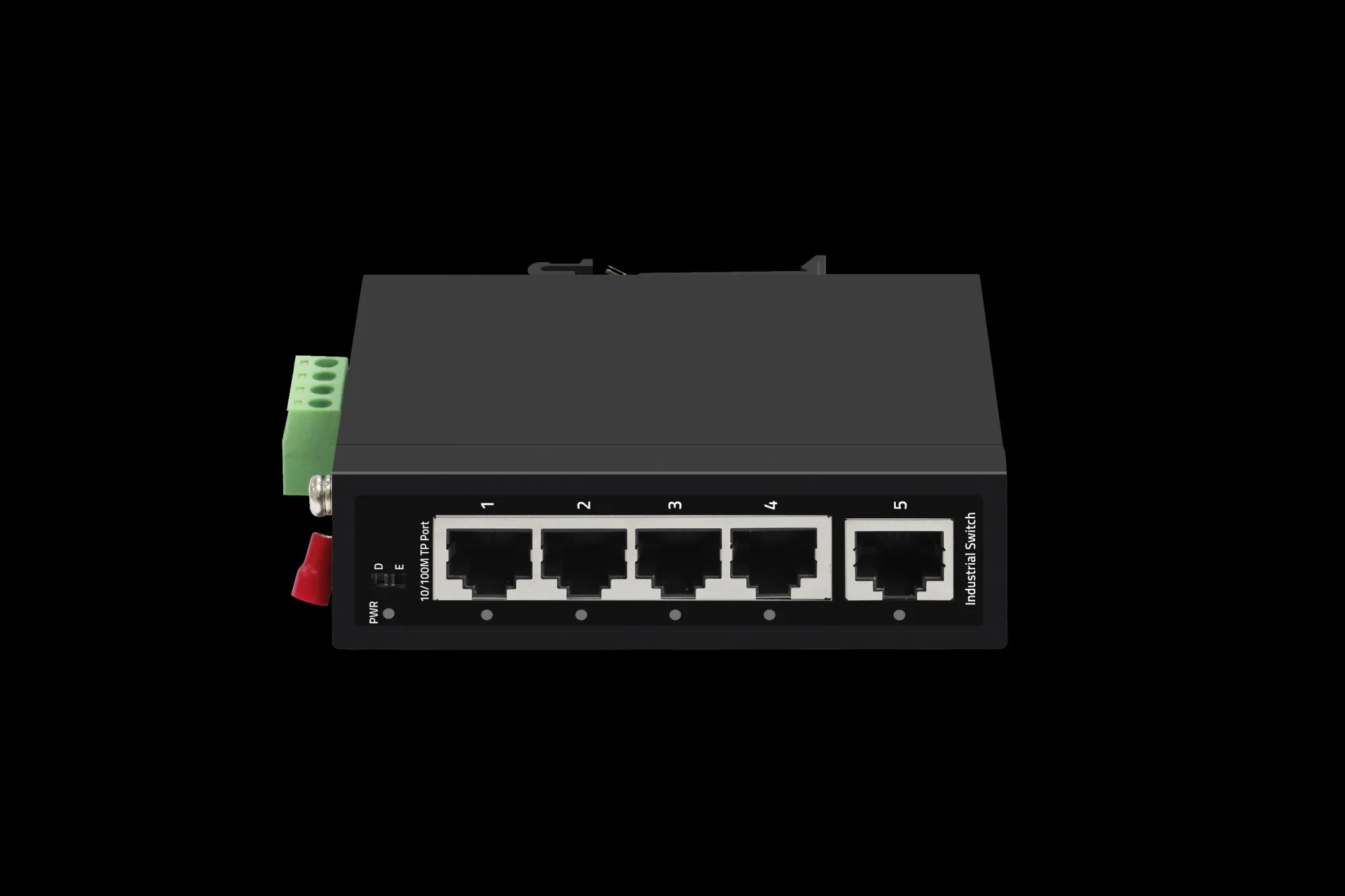

IES200-LS0005
RTL8309NI
5-Port 100M RJ45 Unmanaged Industrial Switch (industrial-grade redundant dual DC 48~55V input; operating temperature -40~75°C; DIN-rail mounting, power cord not included as standard)
No image

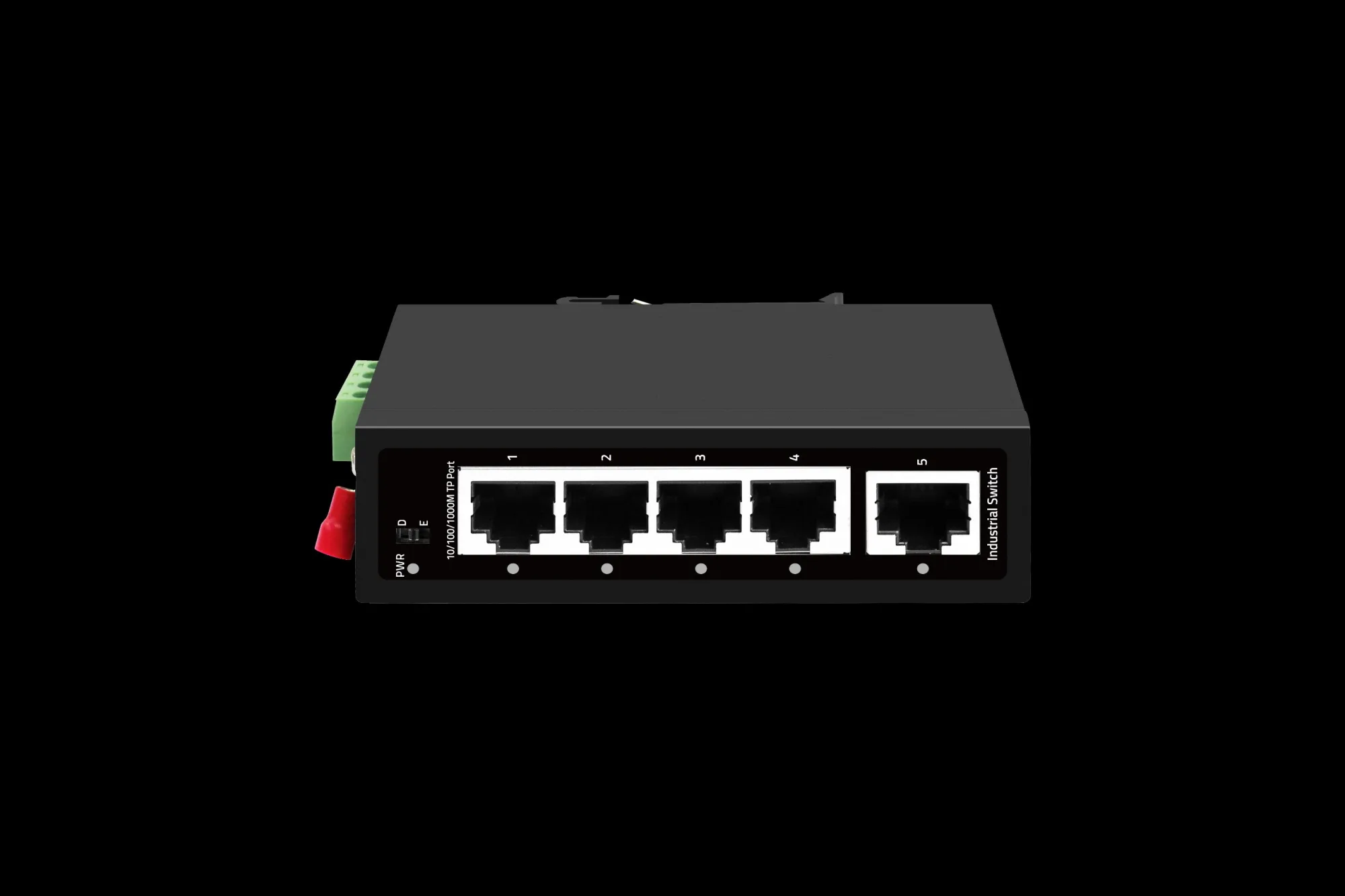

IES200-LS0050
EN8850DN
5-Port Gigabit RJ45 Unmanaged Industrial Switch (industrial-grade 12~55V input (4 PIN industrial terminal + DC2.1); operating temperature -40~75°C; DIN-rail mounting, power cord not included as standard)
No image

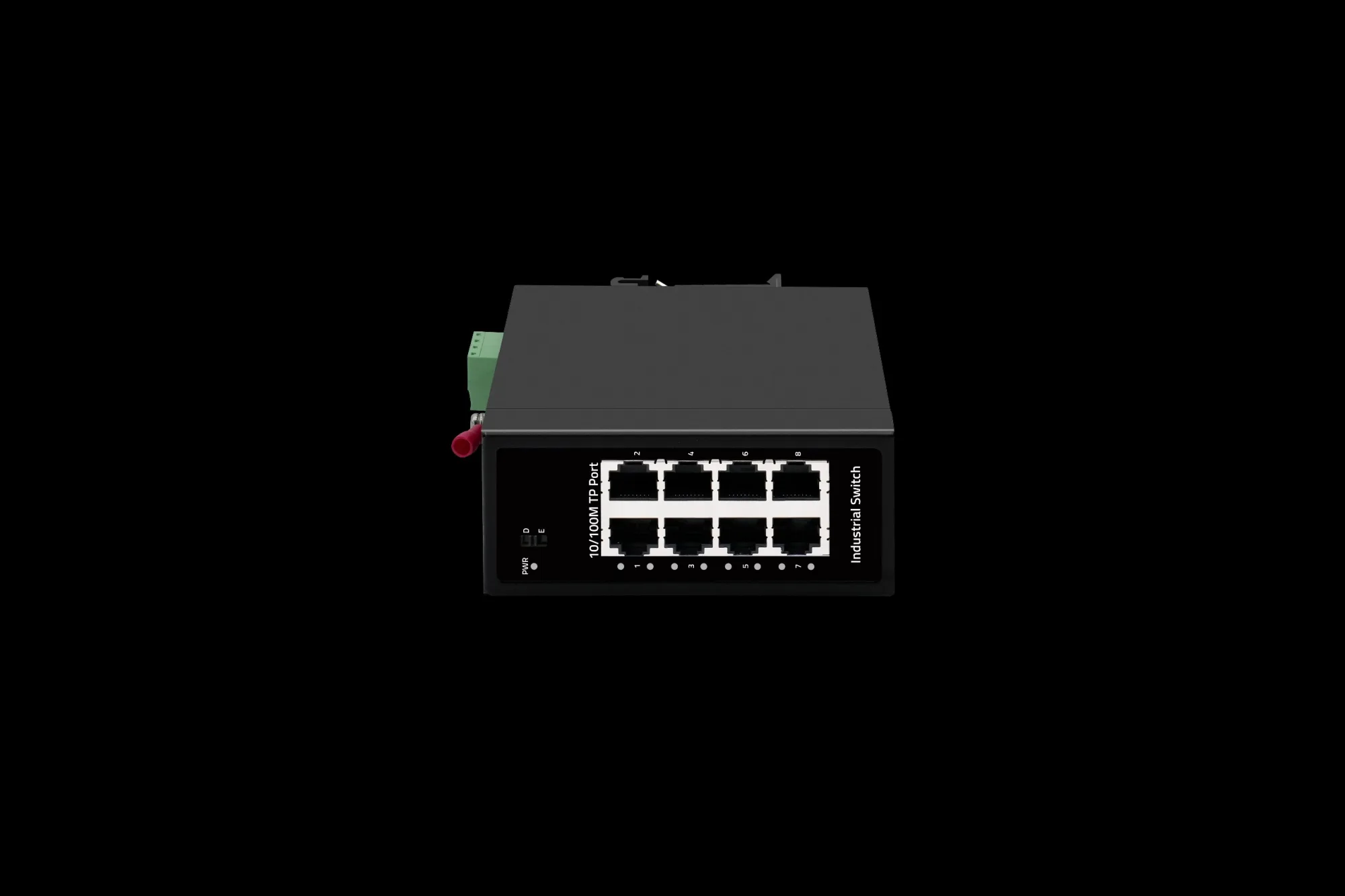

IES200-LS0008
RTL8309N
8-Port 100M RJ45 Unmanaged Industrial Switch (industrial-grade 12~55V input (4 PIN industrial terminal + DC2.1); operating temperature -40~75°C; DIN-rail mounting, power cord not included as standard)
No image

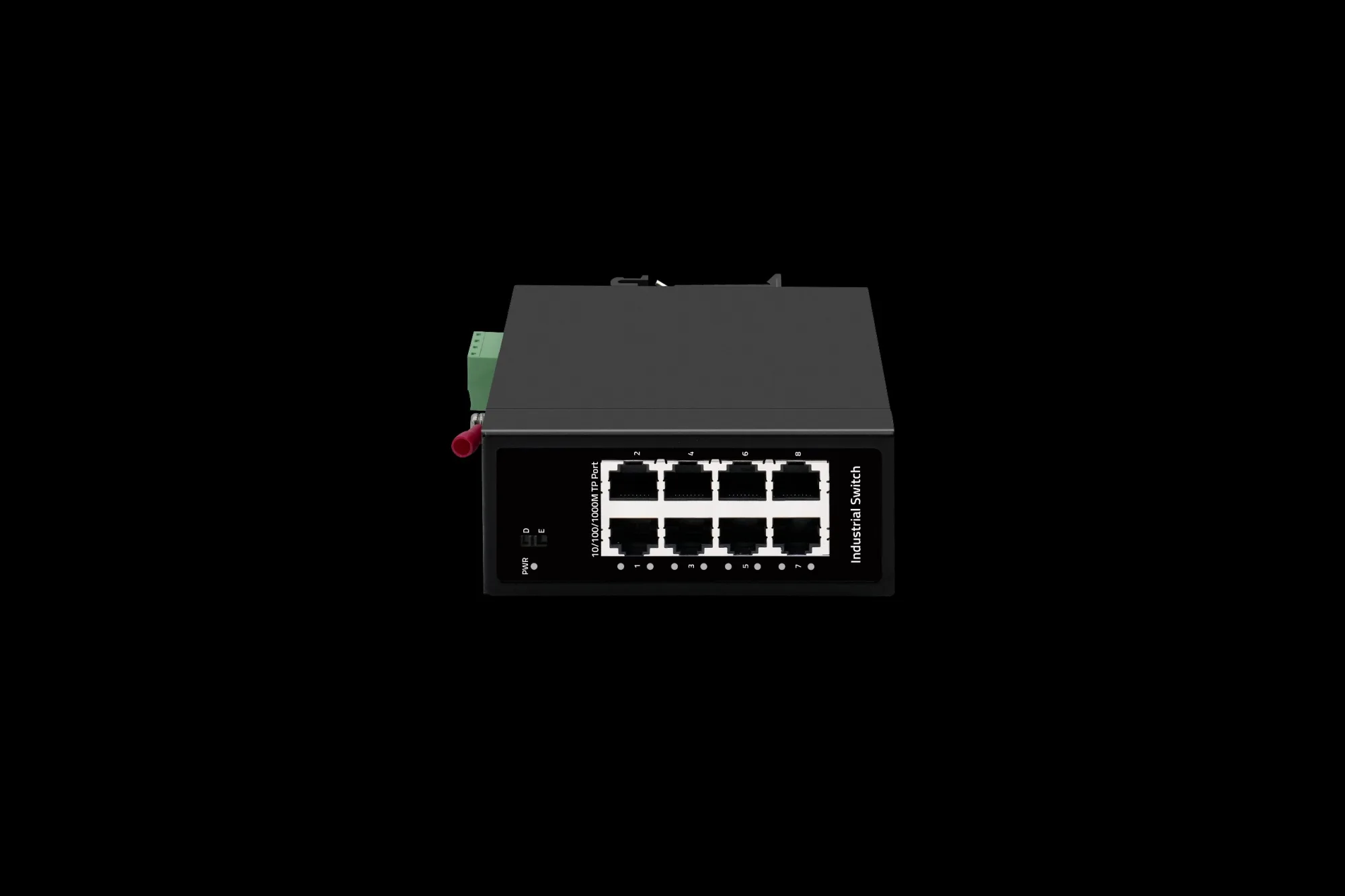

IES200-LS0080
EN8851F
8-Port Gigabit RJ45 Unmanaged Industrial Switch (industrial-grade 12~55V input (4 PIN industrial terminal + DC2.1); operating temperature -40~75°C; DIN-rail mounting, power cord not included as standard)
No image
IES200-LS1108
RTL8310B
8-Port 100M RJ45 + 1-Port Gigabit RJ45 + 1-Port Gigabit SFP Unmanaged Industrial Switch (industrial-grade 12~55V input (4 PIN industrial terminal + DC2.1); operating temperature -40~75°C; DIN-rail mounting, power cord not included as standard)
No image

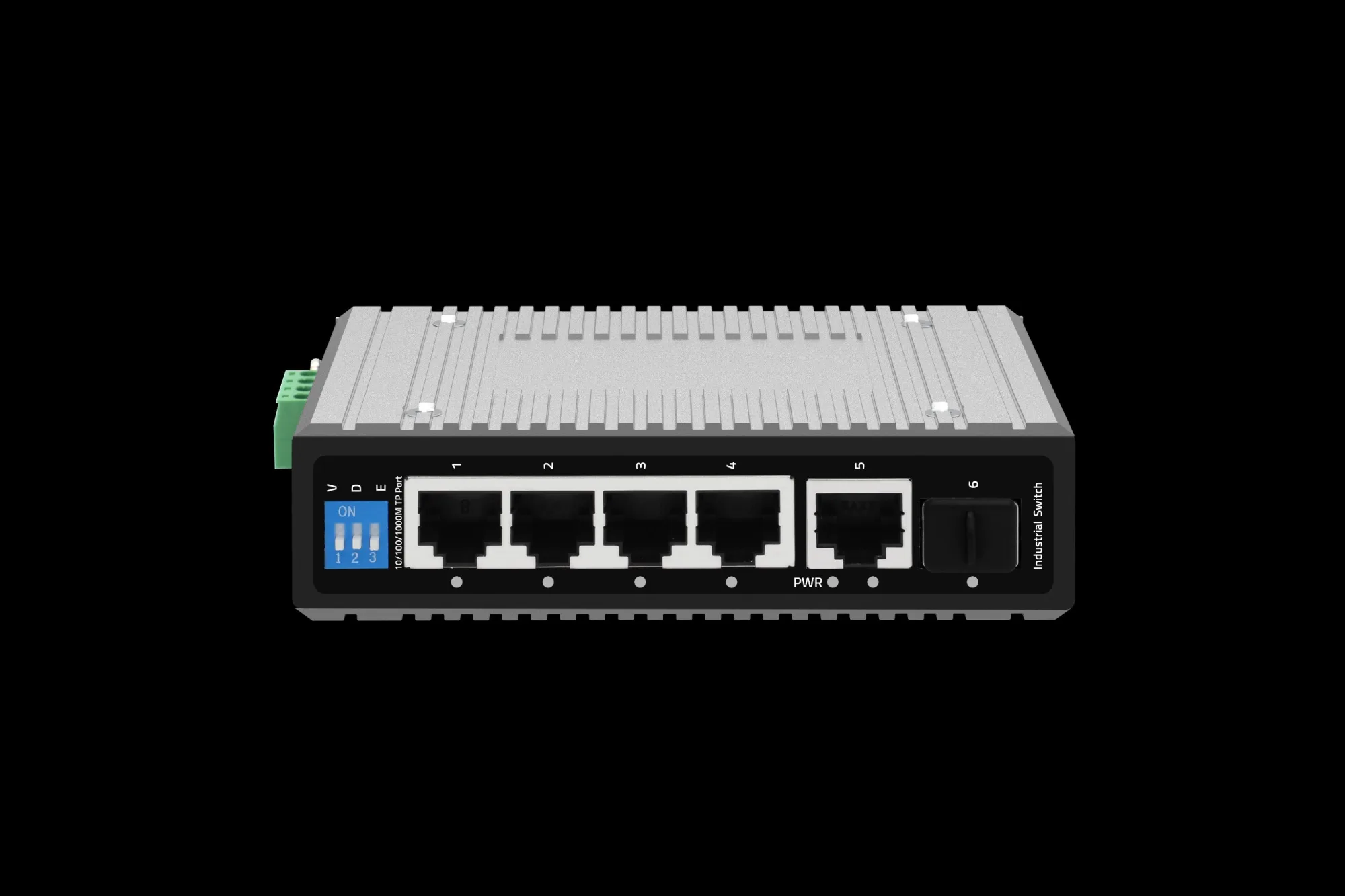

IES200-LS1140
RTL8367S
4-Port Gigabit RJ45 + 1-Port Gigabit RJ45 + 1-Port Gigabit SFP Unmanaged Industrial Switch (industrial-grade redundant dual DC 48~55V input (4 PIN industrial terminal + DC2.1); operating temperature -40~75°C; DIN-rail mounting, power cord not included as standard)
No image
IES200-LS2040
4-Port Gigabit RJ45 + 2-Port Gigabit SFP Unmanaged Industrial Switch (industrial-grade redundant dual DC 48~55V input (4 PIN industrial terminal + DC2.1); operating temperature -40~75°C; DIN-rail mounting, power cord not included as standard)
No image
IES200-LS2080
RTL8370MB
8-Port Gigabit RJ45 + 2-Port Gigabit SFP Unmanaged Industrial Switch (industrial-grade redundant dual DC 48~55V input (4 PIN industrial terminal + DC2.1); operating temperature -40~75°C; DIN-rail mounting, power cord not included as standard)
No image

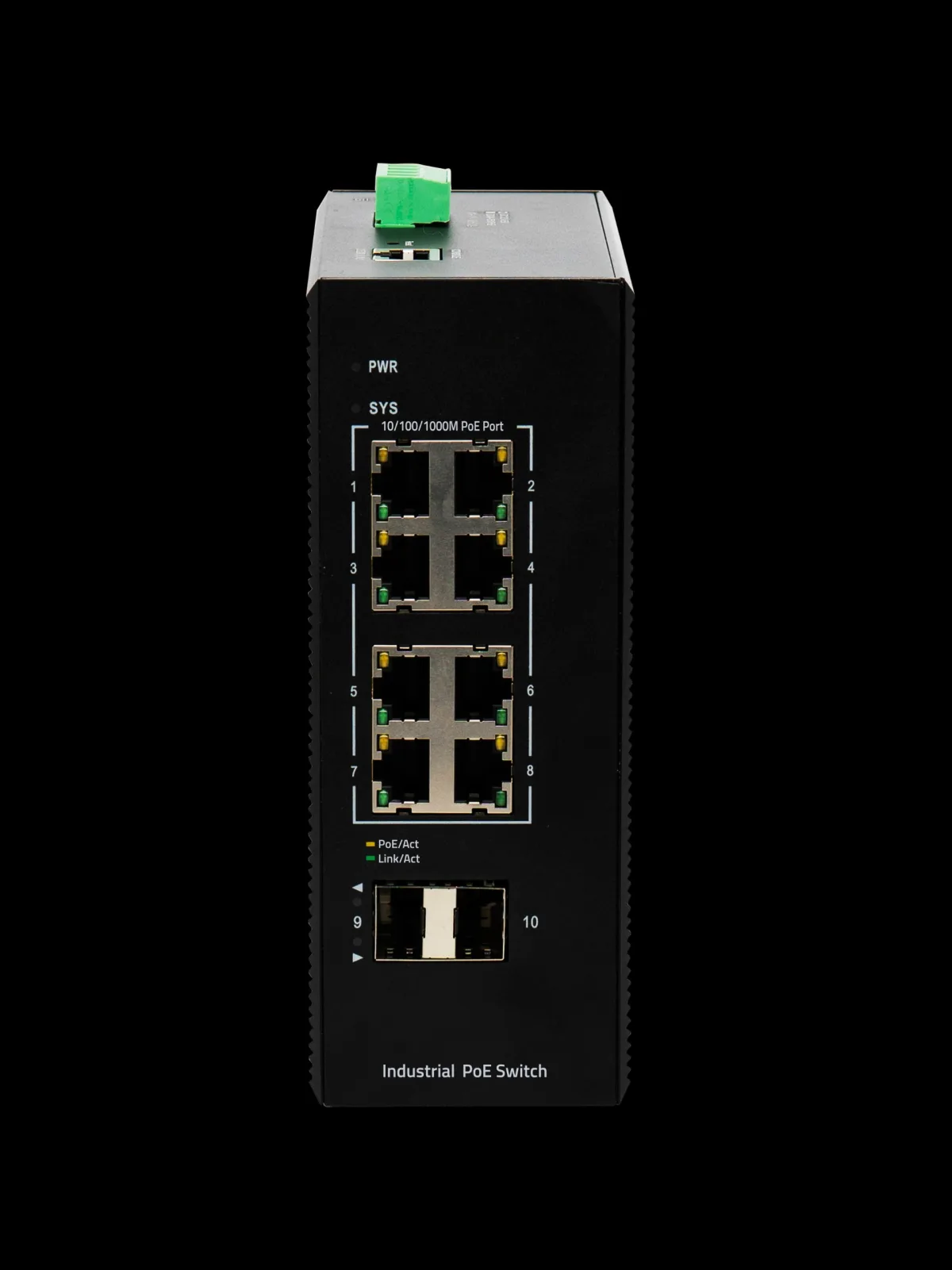

IES200-LS1108P
RTL8310B
8-Port 100M PoE + 1-Port Gigabit RJ45 + 1-Port Gigabit SFP Unmanaged Industrial Switch (industrial-grade redundant dual DC 48~55V input (4 PIN industrial terminal + DC2.1); operating temperature -40~75°C; DIN-rail mounting, power cord not included as standard)
No image

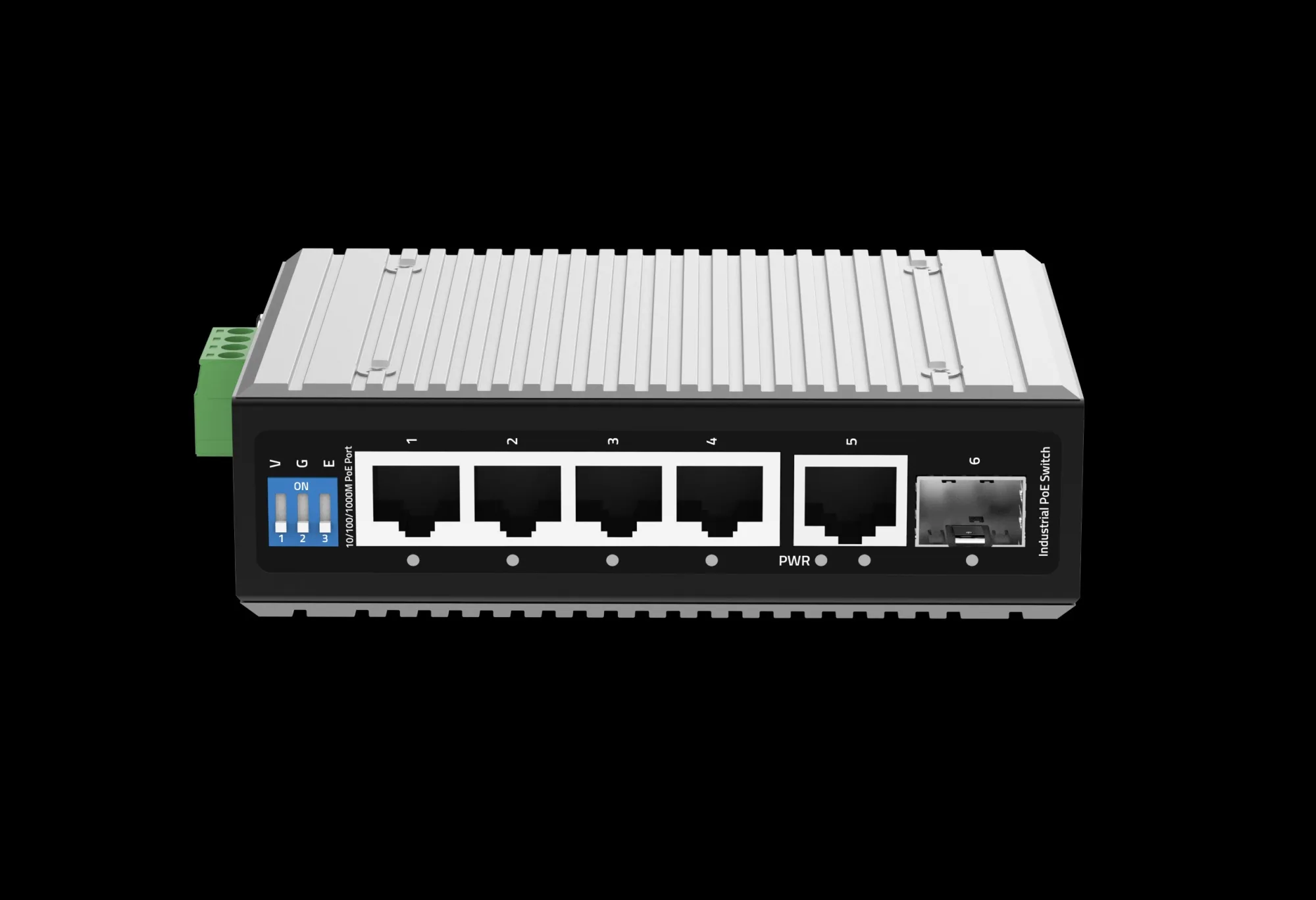

IES200-LS1140P
RTL8367S
4-Port Gigabit PoE + 1-Port Gigabit SFP Unmanaged Industrial Switch (industrial-grade redundant dual DC 48~55V input (4 PIN industrial terminal + DC2.1); operating temperature -40~75°C; DIN-rail mounting, power cord not included as standard)
No image

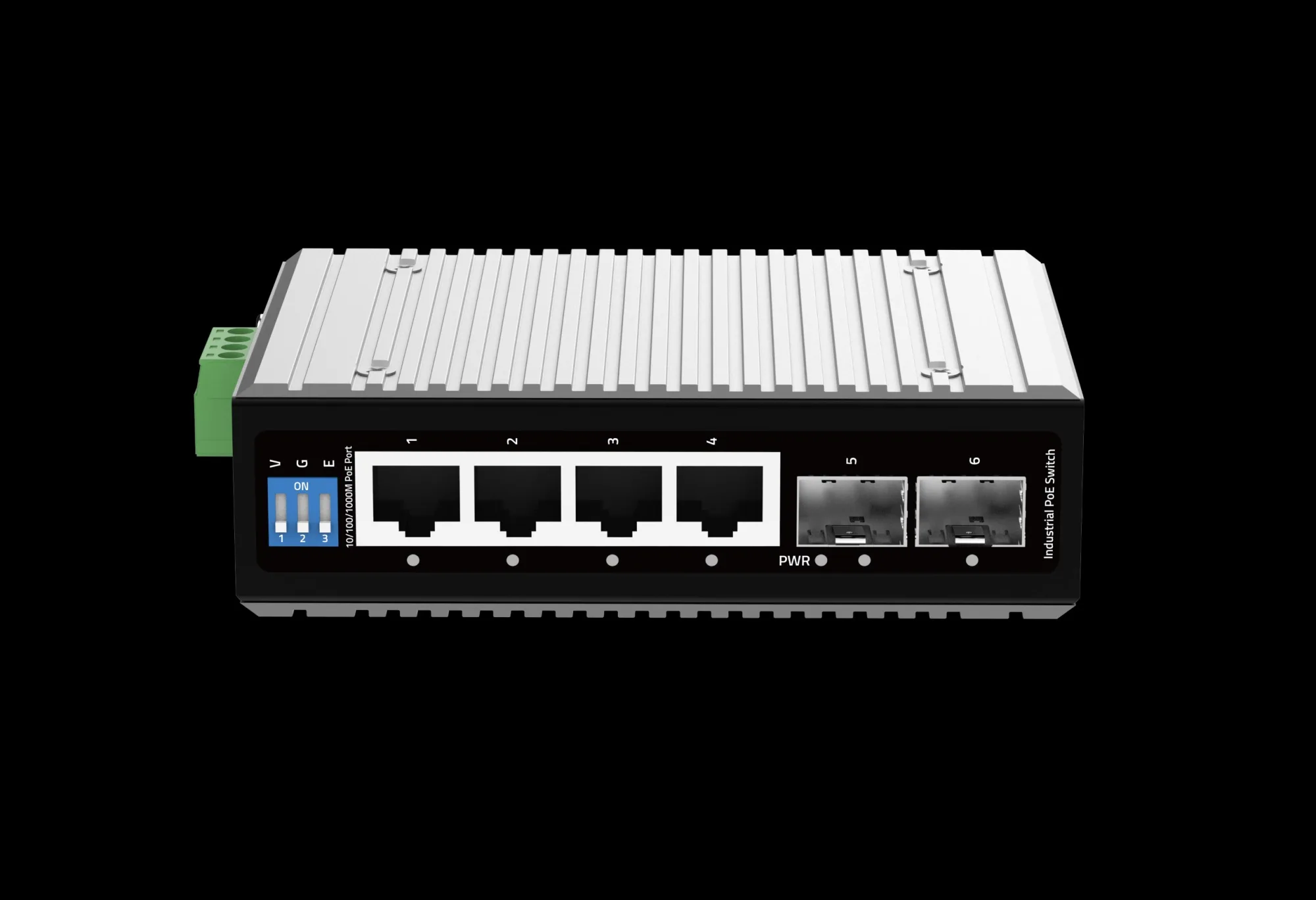

IES200-LS2040P
4-Port Gigabit PoE + 2-Port Gigabit SFP Unmanaged Industrial Switch (industrial-grade redundant dual DC 48~55V input (4 PIN industrial terminal + DC2.1); operating temperature -40~75°C; DIN-rail mounting, power cord not included as standard)
No image
IES200-LS2080P
RTL8370MB
8-Port Gigabit PoE+ 2-Port Gigabit SFP Unmanaged Industrial Switch (supporting PoE, among which ports 1 support HIPoE with output power of 60W, and ports 2 - 8 with a maximum output power of 30W), industrial-grade redundant dual DC 48~55V input (4 PIN industrial terminal + DC2.1); operating temperature -40~75°C; DIN-rail mounting, power cord not included as standard)
No image
IES200-V25-2S4T
VSC7424
4-Port Gigabit RJ45 + 2-Port Gigabit SFP L2+ Managed Industrial Switch (DC 12~55V redundant dual power input; operating temperature: -40~85°C; lightning protection level of 6KV; IP40; DIN-rail installation)
No image
IES200-V25-2S8T
VSC7424
8-Port Gigabit RJ45 + 2-Port Gigabit SFP L2+ Managed Industrial Switch (DC 12~55V redundant dual power input; operating temperature: -40~85°C; lightning protection level of 6KV; IP40; DIN-rail installation)
No image

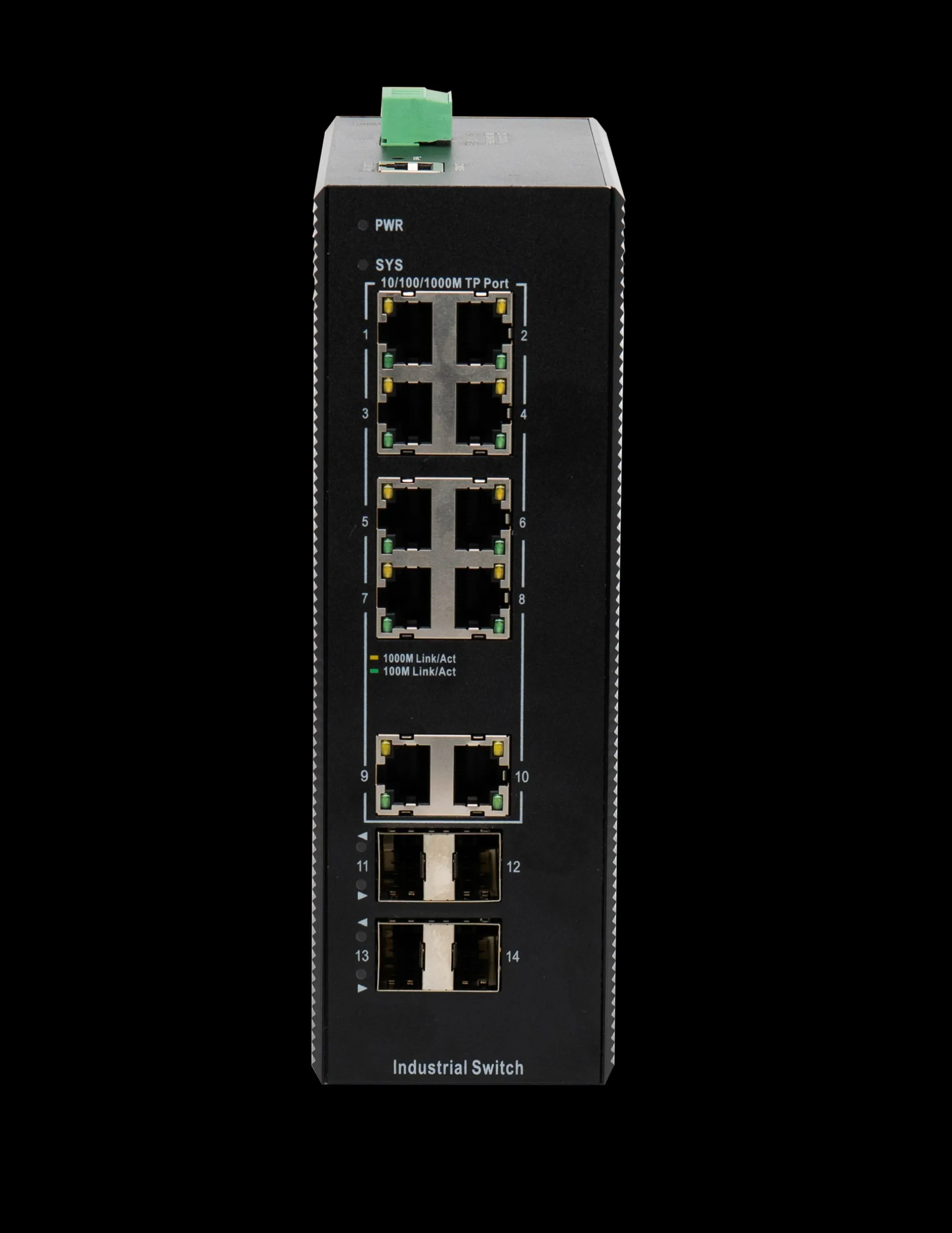

IES200-V25-4S10T
VSC7425
10-Port Gigabit RJ45 + 4-Port Gigabit SFP L2+ Managed Industrial Switch (DC 12~55V redundant dual power input; operating temperature: -40~85°C; lightning protection level of 6KV; IP40; DIN-rail installation)
No image
IES200-V25-2S4P
VSC7424
4-Port Gigabit PoE+ 2-Port Gigabit SFP L2+ Managed PoE Industrial Switch (DC 48~55V redundant dual power input, 120W PoE budget, operating temperature: -40~75°C; IP40; DIN-rail installation)
No image
IES200-V25-2S8P
VSC7424
8-Port Gigabit PoE+ 2-Port Gigabit SFP L2+ Managed PoE Industrial Switch (DC 48~55V redundant dual power input, 240W PoE budget, operating temperature: -40~75°C; IP40; DIN-rail installation)
No image

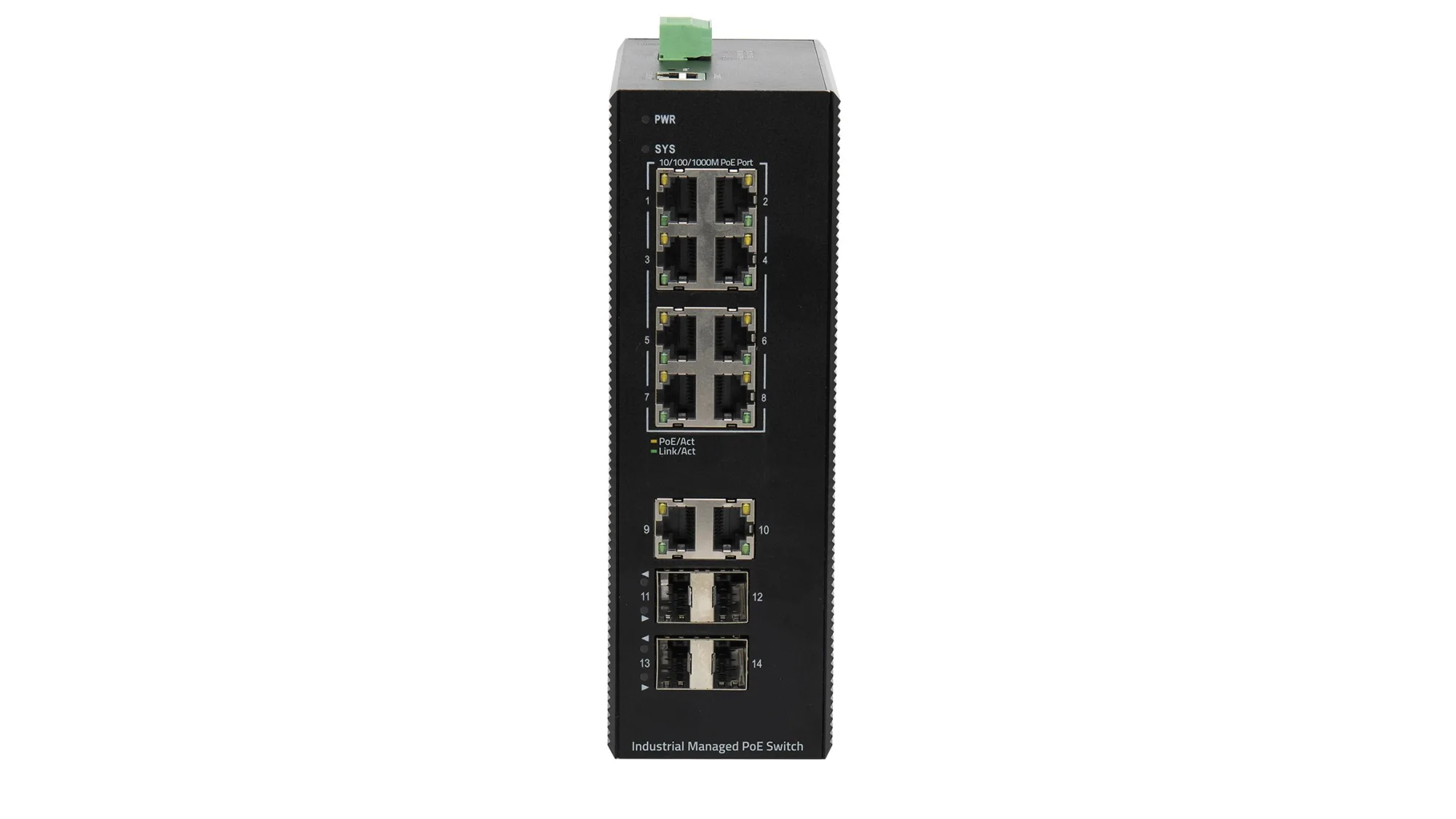

IES200-V25-4S2T8P
VSC7425
8-Port Gigabit PoE+ 2-Port Gigabit RJ45 + 4-Port Gigabit SFP L2+ Managed PoE Industrial Switch (DC 48~55V redundant dual power input, 240W PoE budget, operating temperature: -40~75°C; IP40; DIN-rail installation)
No image

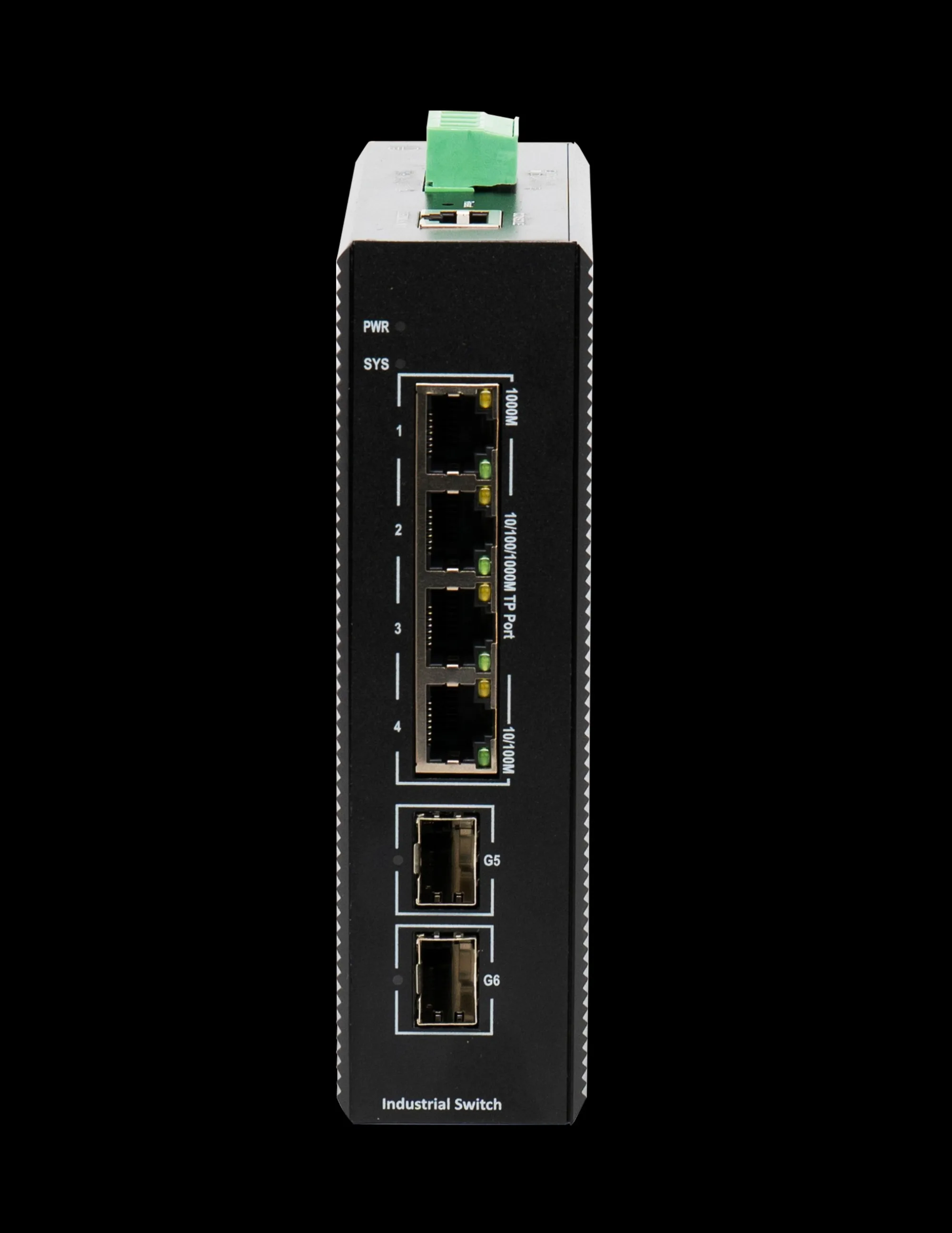

IES200-L25-4T2S
RTL8380M
4-Port Gigabit RJ45 + 2-Port Gigabit SFP L3-lite Managed Industrial Switch (2-way DC12~55V redundant dual power input and 1-way DC12V input; operating temperature: -40~75°C; lightning protection level of 6KV; IP40; DIN-rail installation)
No image

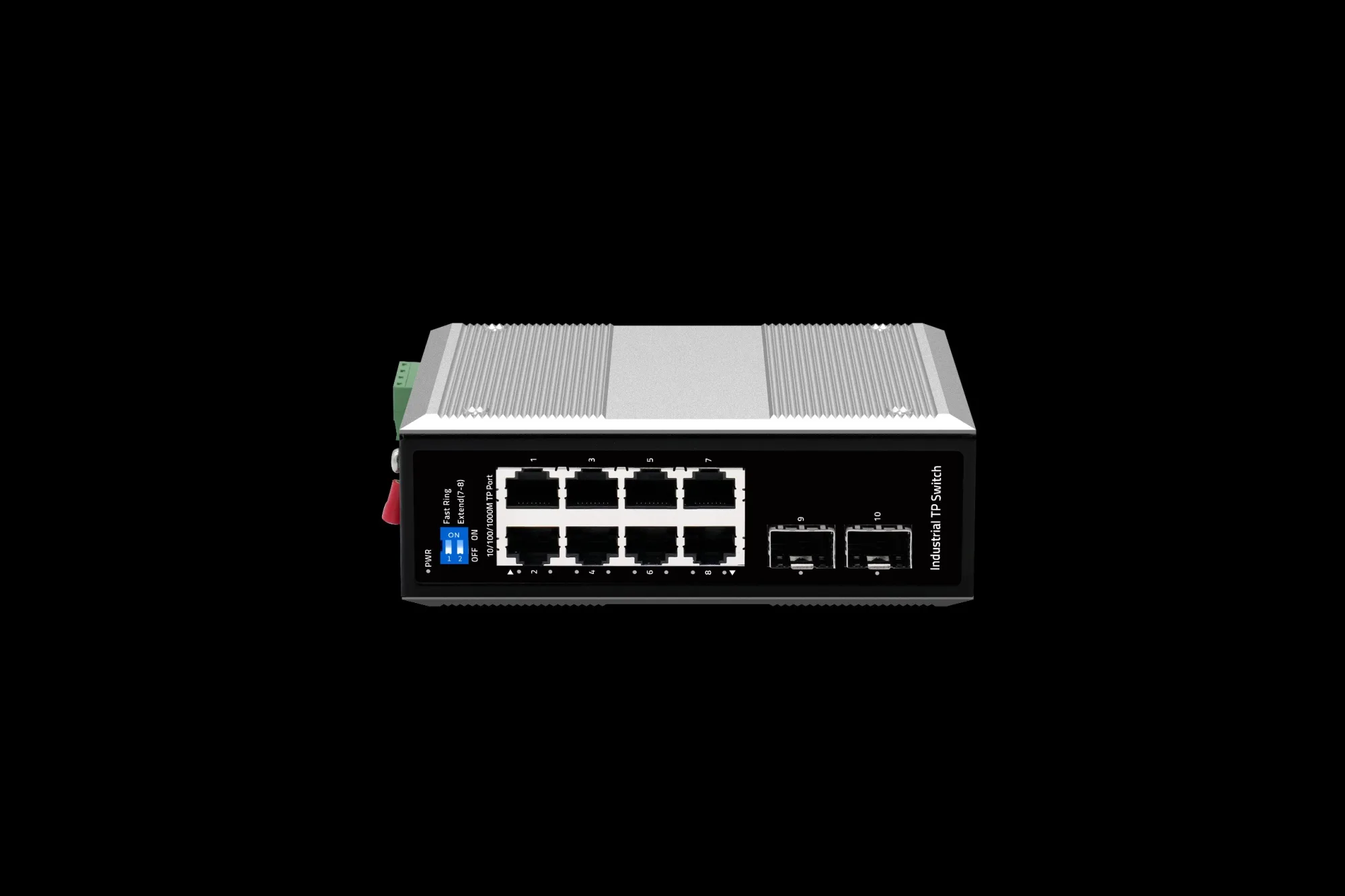

IES200-L25-8T2S
RTL8380M
8-Port Gigabit RJ45 + 2-Port Gigabit SFP L3-lite Managed Industrial Switch (2-way DC12~55V redundant dual power input and 1-way DC12V input; operating temperature: -40~75°C; lightning protection level of 6KV; IP40; DIN-rail installation)
No image
IES200-L25-8T4S
RTL8382M
8-Port Gigabit RJ45 + 4-Port Gigabit SFP L3-lite Managed Industrial Switch (2-way DC12~55V redundant dual power input and 1-way DC12V input; operating temperature: -40~75°C; lightning protection level of 6KV; IP40; DIN-rail installation)
No image

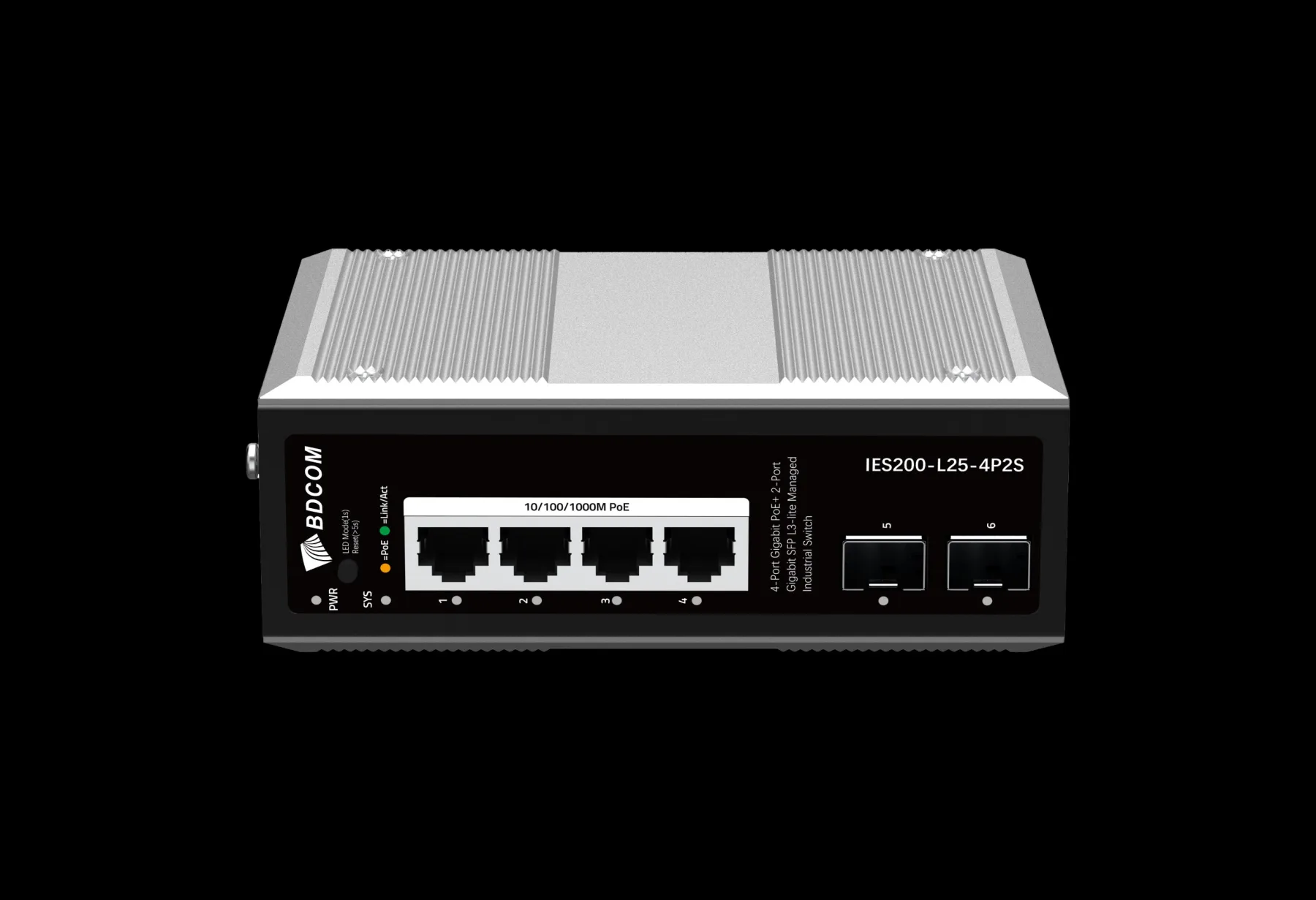

IES200-L25-4P2S
RTL8380M
4-Port Gigabit PoE+ 2-Port Gigabit SFP L3-lite Managed Industrial Switch (2-way DC48~55V redundant dual power input and 1-way DC12V non-PoE input; supporting PoE/PoE+, PoE buget 120W, operating temperature: -40~75°C; lightning protection level of 6KV; IP40; DIN-rail installation,excluding power cable)
No image
IES200-L25-8P2S
RTL8380M
8-Port Gigabit PoE+ 2-Port Gigabit SFP L3-lite Managed Industrial Switch (2-way DC48~55V redundant dual power input and 1-way DC12V non-PoE input; supporting PoE/PoE+, PoE buget 240W, operating temperature: -40~75°C; lightning protection level of 6KV; IP40; DIN-rail installation,excluding power cable)
No image

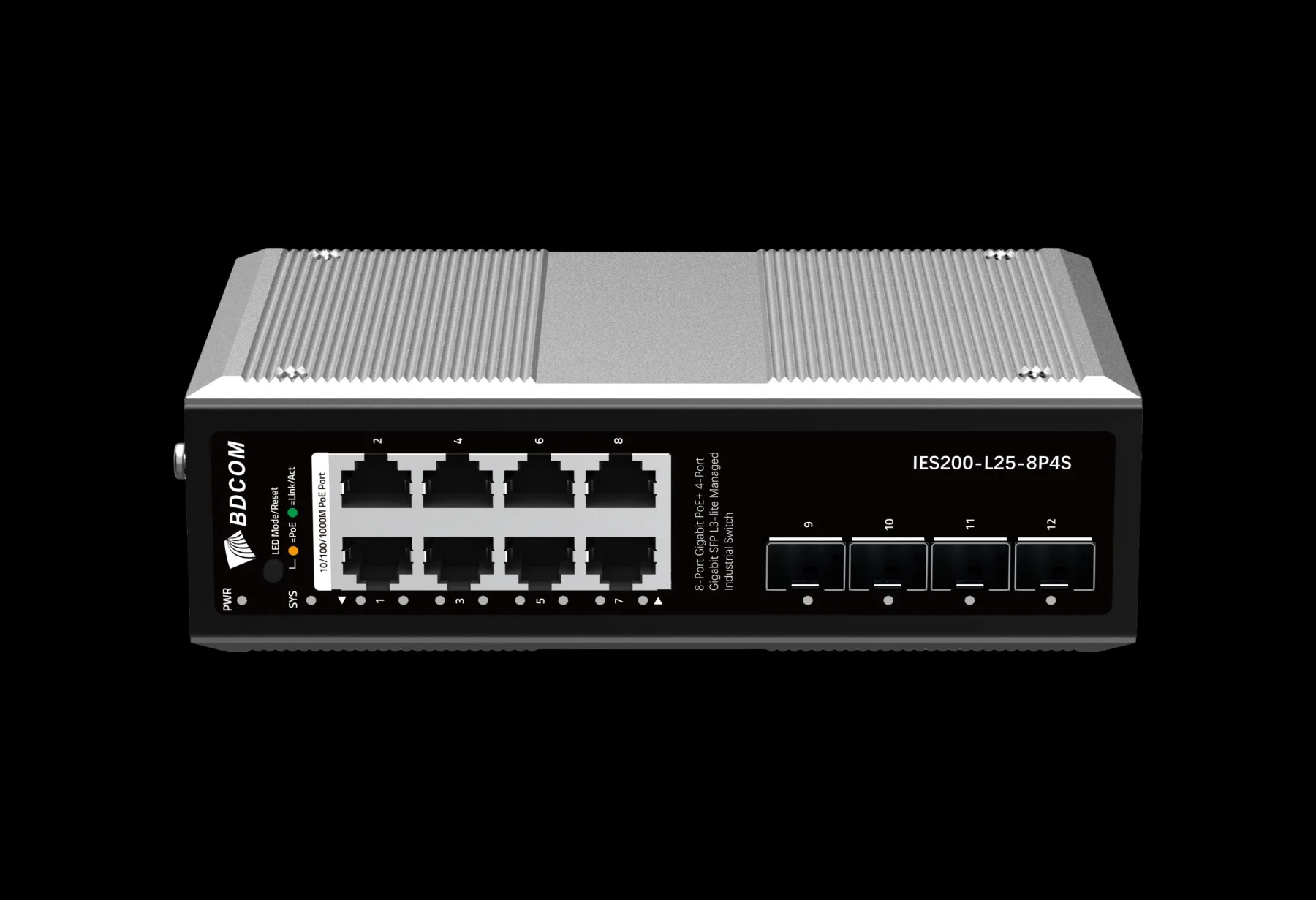

IES200-L25-8P4S
RTL8382M
8-Port Gigabit PoE+ 4-Port Gigabit SFP L3-lite Managed Industrial Switch (2-way DC48~55V redundant dual power input and 1-way DC12V non-PoE input; supporting PoE/PoE+, PoE buget 240W, operating temperature: -40~75°C; lightning protection level of 6KV; IP40; DIN-rail installation,excluding power cable)
No image
IES200-L25-8P4S-H
RTL8382M
8-Port Gigabit PoE+ 4-Port Gigabit SFP L3-lite Managed Industrial Switch (3 industrial - grade DC redundant inputs with 4 PIN industrial terminal and DC2.1 (maximum current 2.5A); supporting PoE/PoE+, PoE buget 240W, (among which ports 1 - 2 support 802.3AF/AT/BT mode with a maximum output power of 90W, and ports 3 - 8 support 802.3AF/AT mode with a maximum output power of 30W)
No image
IES200-L25-16T8S
RTL8382M
16-Port Gigabit RJ45 + 8-Port Gigabit SFP L3-lite Managed Industrial Switch (industrial-grade redundant dual DC 12 - 55V input; operating temperature -40~75°C; protection class IP40; DIN - rail mounting)
No image
IES200-L25-24T4S
RTL8382M
24-Port Gigabit RJ45 + 4-Port Gigabit SFP L3-lite Managed Industrial Switch (industrial-grade redundant dual DC 12 - 55V input; operating temperature -40~75°C; protection class IP40; DIN - rail mounting)
No image
IES200-B25-4S24T
RTL8382M
4-Port Gigabit SFP + 24-Port Gigabit RJ45 Managed Industrial Switch (redundant dual-input isolated power supply (100~240V); operating temperature: -40~75°C; IP40; rack-mounted installation; standard power cable and mounting kits)
No image

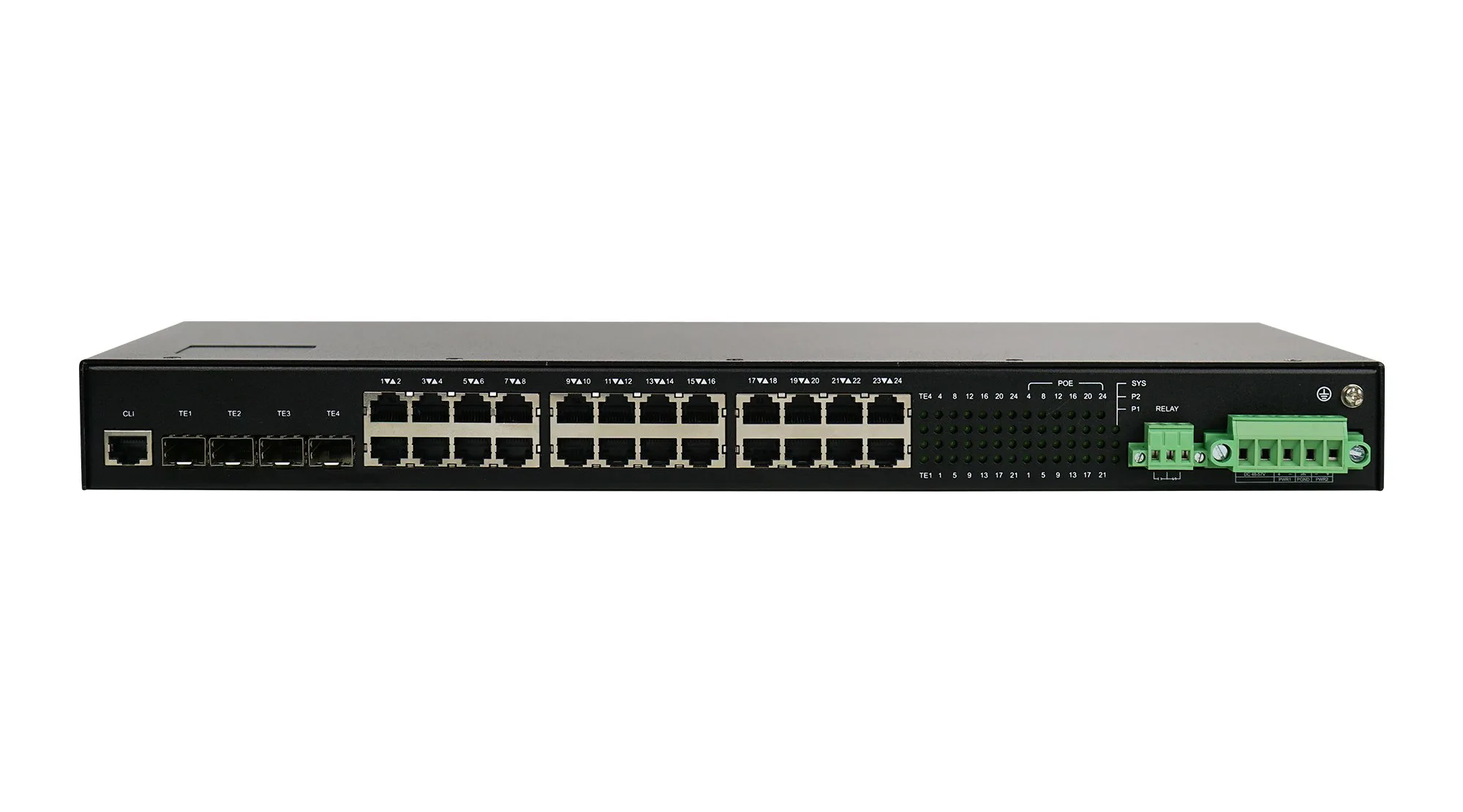

IES200-B25-4S24P
RTL8382M
4-Port Gigabit SFP + 24-Port Gigabit PoE Managed Industrial Switch (48~54VDC redundant dual-input isolated power supply; operating temperature: -40~75°C; IP40; rack-mounted installation; standard power cable and mounting kits)
No image

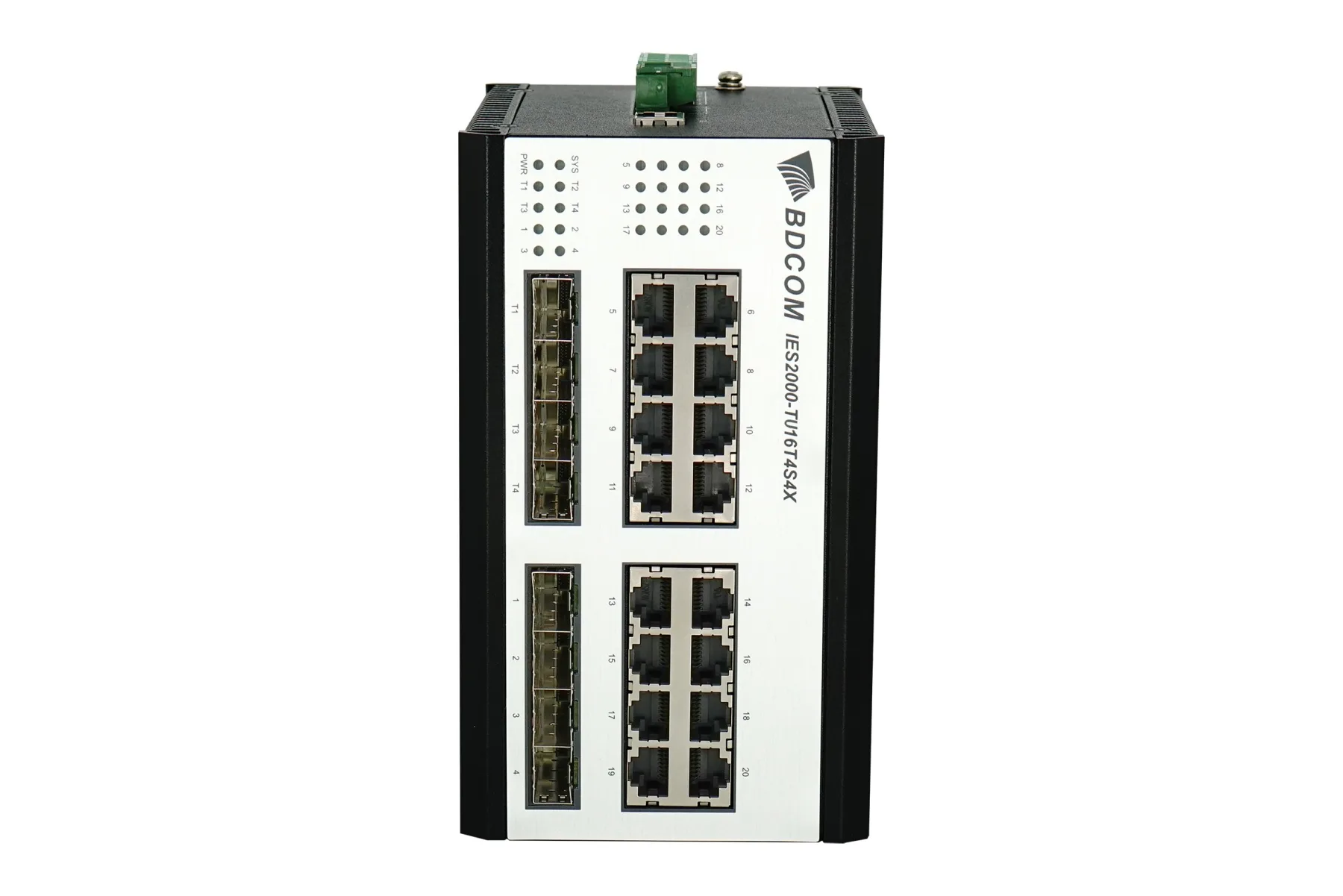

IES2000-TU16T4S4X
RTL9301
16-Port Gigabit RJ45 + 4-Port Gigabit SFP + 4-Port 10G SFP+ L3-lite Stackable Managed Industrial Switch (supports industrial ring protection protocol, operating temperature -40~85°C;IP40; supports 16-unit virtual stacking, industrial universal AC/DC power input, excluding power cable, Din-rail installation)
No image
IES2000-TW16T4S4X
RTL9301
16-Port Gigabit RJ45 + 4-Port Gigabit SFP + 4-Port 10G SFP+ L3-lite Stackable Managed Industrial Switch (supports industrial ring protection protocol, operating temperature -40~85°C;IP40; supports 16-unit virtual stacking, industrial dual DC 36~72V power input, excluding power cable, Din-rail installation)
No image

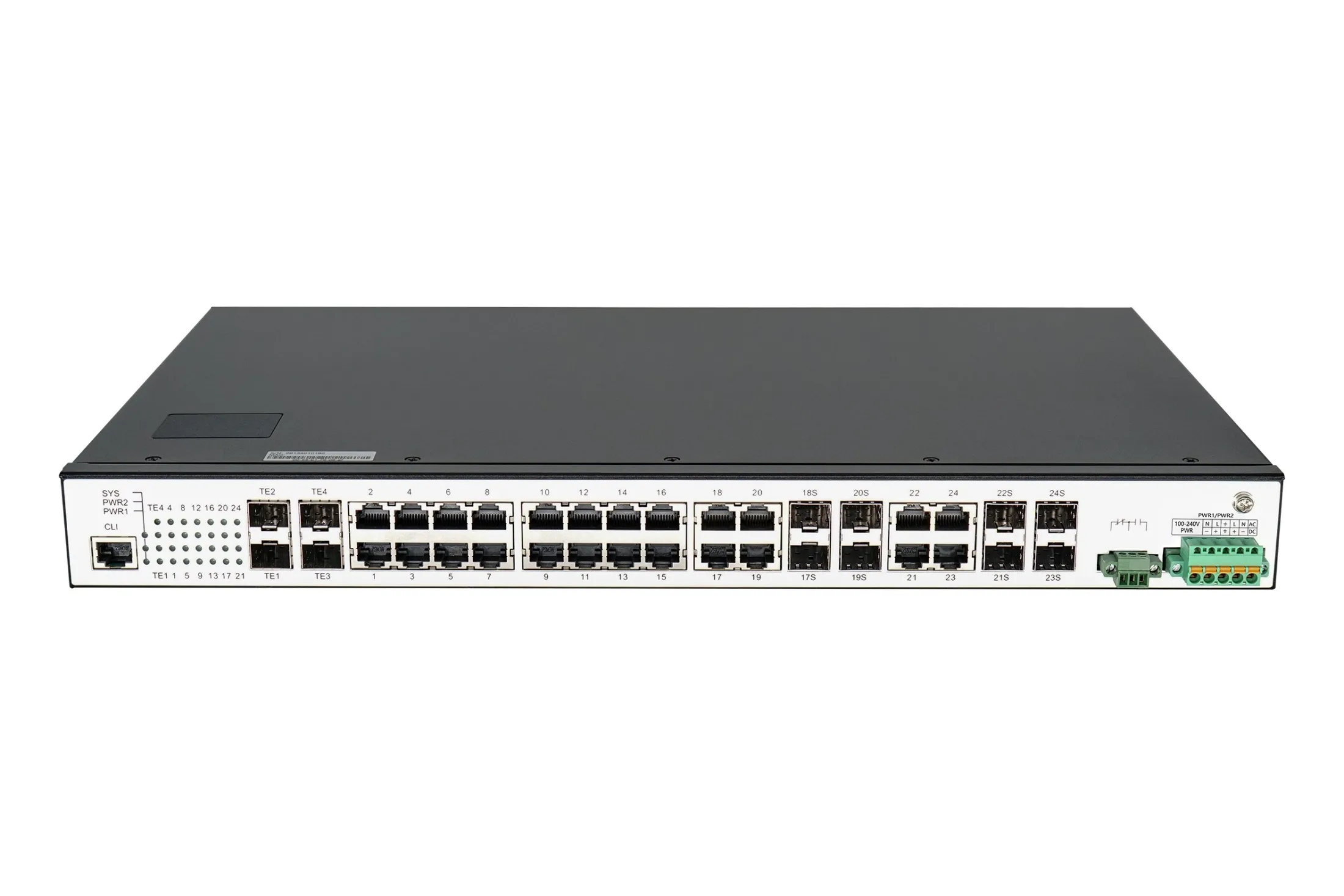

IES2000-5024T8C4X
RTL9301
16-Port Gigabit RJ45 + 8-Port Gigabit RJ45/SFP Combo + 4-Port 10G SFP+ L3-lite Stackable Managed Industrial Switch (supports industrial ring protection protocol, operating temperature: -40~85°C; dual industrial AC power input (90~260V), rack –mounted installation)
No image

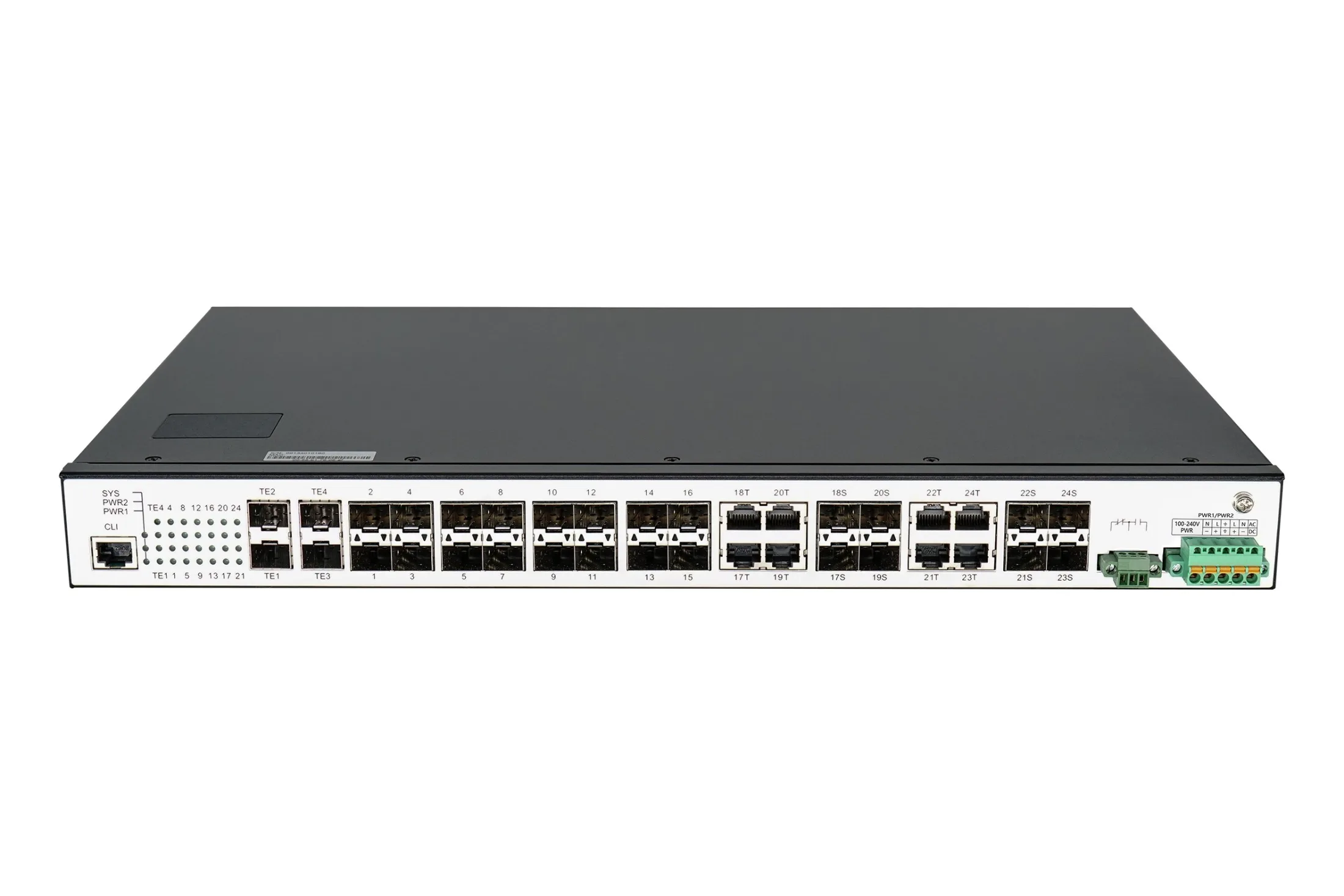

IES2000-5024S8C4X
RTL9301
16-Port Gigabit SFP + 8-Port Gigabit RJ45/SFP Combo + 4-Port 10G SFP+ L3-lite Stackable Managed Industrial Switch (supports industrial ring protection protocol, operating temperature: -40~85°C; dual industrial AC power input (90~260V), rack –mounted installation)
No image
IES2000-5024P4X
RTL9301
24-port Gigabit PoE+ 4-port 10G SFP+ Managed L3-Lite Industrial PoE Switch (supports industrial ring protection protocol, operating temperature: -40~75°C, relative humidity: 5~95% (non-condensing); dual industrial DC power supply (48~57V), 19-inchrack-mount installation)
No image
HDR-30-48
Economical ultra slim 30W DIN rail power supply HDR-30-48, ultra slim design with 35mm (2SU) width, no load power consumption<0.3W, Isolation class Ⅱ,DC output voltage adjustable, Cooling by free air convection (working temperature:-30~+70°C)DIN rail TS-35/7.5 or 15mountable
No image
NDR-75-48
Economical slim 75W Din rail power supply NDR-75-48, Universal AC input /Full range, Cooling by free air convection, can be installed on DIN railTS-35/7.5 or 15, UL 508 (industrial control equipment) approved, BS EN/EN61000-6-2(BS EN/EN50082-2)industrial immunity level, 100% full load burn-in test
No image
NDR-120-48
Economical slim 120W DIN rail power supply NDR-120-48, Universal AC input / Full range, Cooling by free air convection, can be installed on DINrailTS-35/7.5 or 15, UL 508 (industrial control equipment) approved, BS EN/EN61000-6-2(BS EN/EN50082-2) industrial immunity level, 100% full load burn-in test
No image
NDR-240-48
Economical slim 240W Din rail power supply NDR-240-48, Universal AC input / Full range, Built-in active PFC function, Cooling by free air convection, can be installed on DIN rail TS-35/7.5 or 15, UL 508 (industrial control equipment) approved, BS EN/EN61000-6-2(BS EN/EN50082-2)industrial immunity level, 100% full load burn-in test
No image
NDR-480-48
Economical slim 480W Din rail power supply NDR-480-48, Universal AC input / Full range, Built-in active PFC function, Cooling by free air convection, can be installed on DINrailTS-35/7.5 or 15, UL 508 (industrial control equipment) approved, BS EN/EN61000-6-2(BS EN/EN50082-2) industrial immunity level, 100% full load burn-in test
